White Paper: Leveraging BeagleBone Black and Eclipse IoT for Scalable IoT Solutions

Executive Summary:

This white paper explores the powerful synergy between the BeagleBone Black (BBB), a cost-effective and versatile embedded platform, and Eclipse IoT, a robust open-source framework, for developing scalable and secure Internet of Things (IoT) solutions. We examine the key features of both technologies, detail their integration, present real-world use cases, and discuss future trends. This combination offers a compelling alternative for building efficient and manageable IoT deployments across diverse industries.

1. Introduction:

The IoT is revolutionizing industries by enabling real-time data acquisition, analysis, and automated control. Building effective IoT solutions requires a robust platform that seamlessly integrates hardware, software, and communication protocols. This white paper argues that the combination of BeagleBone Black and Eclipse IoT provides an ideal foundation for such solutions, offering a balance of performance, cost-effectiveness, and open-source flexibility.

2. BeagleBone Black: An Ideal IoT Platform:

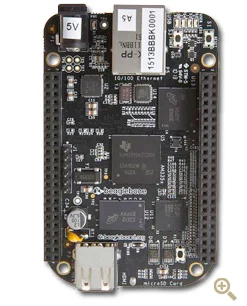

The BeagleBone Black is a low-cost, community-supported, open-source embedded computer that runs Linux. Its key features make it well-suited for IoT applications:

  • Cost-Effective and Expandable: The BBB's affordability and extensive community support make it accessible for prototyping and deployment. Its expansion headers allow for easy integration with a wide range of sensors and actuators.
  • Powerful Processing: The ARM Cortex-A8 processor provides sufficient processing power for edge computing tasks. The Programmable Real-time Units (PRUs) enable precise control and real-time data processing, crucial for industrial automation and other time-sensitive applications.
  • Rich Connectivity: Built-in Ethernet, USB, and a variety of interfaces (UART, SPI, I2C, ADC, PWM, CAN) facilitate communication with various devices and networks. Wi-Fi and Bluetooth connectivity can be added via USB dongles or expansion boards.
  • Linux-Based: Running a full Linux distribution (typically Debian or Ubuntu) provides access to a rich software ecosystem and simplifies development.
  • On-board Storage: The integrated eMMC flash memory provides ample storage for the operating system, applications, and data.

3. Eclipse IoT: A Robust Framework for IoT Development:

Eclipse IoT is an open-source project providing frameworks and tools for building IoT solutions. Key components relevant to this discussion include:

  • Eclipse Kura: A Java/OSGi-based framework for building IoT gateways. Kura handles device connectivity, data management, and edge processing. It can be deployed on the BBB, enabling local intelligence and reducing reliance on cloud connectivity.
  • Eclipse Kapua: A platform for managing IoT devices and data. Kapua provides device registration, provisioning, configuration, firmware updates, and remote monitoring. It can be used to manage a fleet of BBB-based devices.
  • Eclipse Paho: A family of MQTT client libraries for various programming languages. Paho enables lightweight and efficient communication between devices and the cloud using the MQTT protocol. This is crucial for data transmission from the BBB to other parts of the IoT system.
  • Eclipse Mosquitto: A popular open-source MQTT broker. Mosquitto can be deployed on a server or even on the BBB itself for local message routing.
  • Eclipse Ditto: A framework for creating digital twins of IoT devices. Ditto allows for abstracting the physical device and managing it through a digital representation. This simplifies device control and data management.

4. Integrating BeagleBone Black with Eclipse IoT:

The combination of BBB and Eclipse IoT enables a powerful and flexible architecture for IoT solutions:

  • Sensor Data Acquisition: Sensors connected to the BBB's various interfaces (I2C, SPI, ADC, etc.) can be read and processed using software written in languages like Python or C.
  • Edge Processing with Kura: Kura can be deployed on the BBB to perform local data processing, filtering, and aggregation. This reduces the amount of data transmitted to the cloud and allows for real-time decision-making. Kura provides APIs for managing device connectivity and data flows.
  • MQTT Communication with Paho: The Paho MQTT client library can be used to publish sensor data and device status updates to an MQTT broker (e.g., Mosquitto). This enables efficient and scalable communication within the IoT system. Example (Conceptual Python with Paho):

<!-- end list -->

Python


import paho.mqtt.client as mqtt

def on_connect(client, userdata, flags, rc):
print("Connected with result code "+str(rc))

client = mqtt.Client()
client.on_connect = on_connect
client.connect("your_mqtt_broker_address", 1883, 60)
client.loop_start()

# ... (Code to read sensor data) ...

client.publish("sensor/temperature", sensor_value)

client.loop_stop()

import paho.mqtt.client as mqtt def on_connect(client, userdata, flags, rc): print("Connected with result code "+str(rc)) client = mqtt.Client() client.on_connect = on_connect client.connect("your_mqtt_broker_address", 1883, 60) client.loop_start() # ... (Code to read sensor data) ... client.publish("sensor/temperature", sensor_value) client.loop_stop()

  • Device Management with Kapua: Kapua can be used to remotely manage and monitor the BBB devices. This includes tasks like device registration, firmware updates, and configuration management.
  • Digital Twins with Ditto: Creating digital twins of the BBB devices using Ditto allows for abstracting the hardware and simplifying device control and data management.

5. Use Cases:

  • Smart Agriculture: Monitoring soil conditions, weather data, and irrigation systems using BBBs and transmitting data via MQTT to a central server for analysis and automated irrigation control.
  • Industrial Automation: Implementing predictive maintenance by collecting sensor data from machines using BBBs and processing it at the edge or in the cloud to detect anomalies and predict failures.
  • Smart Home Automation: Controlling lighting, appliances, and security systems using BBBs and communicating via MQTT to a central hub.
  • Environmental Monitoring: Deploying BBBs with various sensors to monitor air and water quality, transmitting data to a central platform for analysis and reporting.

6. Future Prospects:

  • AI and Machine Learning at the Edge: Integrating lightweight machine learning frameworks like TensorFlow Lite onto the BBB for local data analysis and anomaly detection.
  • 5G and Edge Computing: Leveraging 5G connectivity for faster data transfer and enhanced edge computing capabilities on the BBB.
  • Security Enhancements: Implementing robust security measures, including secure boot, data encryption, and authentication, to protect the IoT system from threats.
  • Containerization: Using container technologies like Docker to simplify application deployment and management on the BBB.

7. Comparison to Alternatives:

While other platforms exist (Raspberry Pi, Arduino, ESP32), the BBB offers a unique combination of features. The Raspberry Pi is more powerful but less focused on industrial control. Arduino is simpler but lacks the processing power and OS of the BBB. ESP32 is good for low-power applications but has limited processing and memory.

8. Conclusion:

The BeagleBone Black, combined with the Eclipse IoT framework, provides a powerful and versatile platform for building scalable and secure IoT solutions. Its open-source nature, cost-effectiveness, and rich feature set make it an attractive choice for a wide range of applications.
