Smart Inverters for Renewable Energy and Smart Grid Integration

Control Architectures, Grid-Forming Technologies, Simulation, Hardware Prototyping and Research Roadmap

Research White Paper
Version: 1.0
Date: August 2026

Executive Summary

The rapid growth of solar photovoltaic (PV), wind energy, battery energy storage systems (BESS), electric vehicles and other distributed energy resources (DERs) is fundamentally changing the electrical power system. Unlike conventional synchronous generators, most renewable-energy resources are connected to the grid through power-electronic converters.

This transformation creates a fundamental engineering challenge: the inverter is no longer merely a device that converts DC power into AC power; it increasingly becomes an active participant in grid stability, voltage regulation, frequency regulation, power quality, fault response and energy management.

The concept is strongly associated with the work of Qing-Chang Zhong and Tomas Hornik, whose Control of Power Inverters in Renewable Energy and Smart Grid Integration provides a systematic treatment of power-quality control, power-flow control, synchronization, parallel inverter operation and synchronverter technology. Wiley identifies synchronverters as pioneering work in this field. (Wiley Online Library)

The evolution can be represented as:

Conventional Grid-Following Inverter → Advanced Grid-Following Inverter → Grid-Forming Inverter → Virtual Synchronous Generator → Advanced DER Grid-Forming Resource

The transition is important because increasing penetration of inverter-based resources can reduce the relative contribution of physical synchronous-machine inertia. Grid-forming inverters are consequently being investigated as an important technology for supporting low-inertia power systems. (DOI)

A smart inverter combines:

  • Renewable-energy conversion
  • DC-link control
  • MPPT
  • Voltage and current regulation
  • Active/reactive power control
  • Grid synchronization
  • Frequency and voltage support
  • Droop or virtual-machine control
  • Current limiting
  • Fault ride-through
  • Islanding and resynchronization
  • BESS/energy-reserve management
  • Communications and supervisory control
  • Grid-code compliance
  • Cybersecurity and diagnostics

This paper proposes a research and development framework that combines MATLAB/Simulink/Simscape, Python, open-source repositories, embedded firmware, hardware-in-the-loop testing, RTOS/embedded Linux and hardware-software co-design to create a path from academic research to a practical smart-inverter prototype.

1. Introduction

Renewable generation is increasingly connected through power electronic converters. Solar PV inherently produces DC power, while batteries also require bidirectional DC/AC conversion. Modern wind turbines frequently use converter interfaces as well.

Consequently, the power grid is moving from a system dominated by rotating electrical machines toward a system containing a large population of electronically controlled resources.

This changes the role of the inverter.

A conventional grid-following inverter generally assumes that the grid already establishes voltage and frequency. The inverter measures the grid waveform, synchronizes to it and injects controlled current.

A grid-forming inverter takes a fundamentally different approach. It establishes a controlled voltage waveform and can participate in establishing voltage and frequency. This makes it particularly attractive for weak grids, islanded microgrids, black-start applications and future low-inertia power systems.

Zhong and Hornik's work provides an important foundation for this evolution, including the synchronverter concept, in which inverter control incorporates a mathematical representation of synchronous-generator behavior. Their book covers power quality, neutral-line provision, power flow, synchronization and parallel operation. (Wiley Online Library)

2. What Is a Smart Inverter?

A smart inverter is a power-electronic converter equipped with advanced control, sensing, communication and protection capabilities that allow it to provide functions beyond basic DC-to-AC conversion.

A simplified architecture is:

Renewable Energy / BESS | v +----------------+ | DC Source | | PV / Battery | +----------------+ | v +----------------+ | DC-Link | | Regulation | +----------------+ | v +----------------+ | Power | | Semiconductor | | Bridge | +----------------+ | v L / LC / LCL Filter | v PCC / Grid | +--------------+--------------+ | | v v Voltage/Current Sensors Grid Measurements | | +--------------+--------------+ | v Digital Controller | +---------------+----------------+ | | | v v v MPPT P/Q Control V/f Control | | | +---------------+----------------+ | v PWM / Modulation | v Gate Drivers

The controller therefore becomes the intelligence layer between the energy source and the electrical network.

3. Fundamental Smart-Inverter Functions

A modern inverter may perform several control functions simultaneously.

3.1 Active-Power Control

The inverter regulates real power:

P=VIcos⁡(ϕ)P = V I \cos(\phi)

Applications include:

  • PV power injection
  • Battery charging/discharging
  • Peak shaving
  • Load following
  • Frequency response
  • Renewable-energy curtailment
  • Energy arbitrage

3.2 Reactive-Power Control

Reactive power can be expressed approximately as:

Q=VIsin⁡(ϕ)Q = V I \sin(\phi)

The inverter can therefore provide:

  • Power-factor correction
  • Voltage support
  • Volt-VAR control
  • Reactive-power compensation
  • Distribution-voltage regulation

This makes the inverter a potential grid-edge reactive-power resource.

3.3 Maximum Power Point Tracking

PV systems normally use MPPT to extract maximum available energy.

Typical algorithms include:

  • Perturb and Observe
  • Incremental Conductance
  • Fractional Open-Circuit Voltage
  • Fractional Short-Circuit Current
  • Model-based MPPT
  • Adaptive MPPT
  • AI-assisted MPPT

The MPPT controller generates a power or voltage reference for the converter.

4. Grid-Following Inverter Control

Grid-following (GFL) inverters normally behave as controlled current sources.

A simplified control hierarchy is:

Grid Voltage | v PLL / Sync | v Angle θ and Frequency | v +---------------------+ | dq Transformation | +---------------------+ | +-------+-------+ | | v v P/Q Control Vdc Control | | +-------+-------+ | v Id / Iq* | v Current Controller | v PWM

A key advantage is its relatively mature implementation methodology.

However, GFL operation assumes the surrounding grid provides a sufficiently strong voltage reference.

In weak grids, PLL dynamics and inverter-grid interactions can become important stability considerations.

5. Grid-Forming Inverters

Grid-forming (GFM) control changes the fundamental control philosophy.

Instead of primarily asking:

"What current should I inject into the existing grid?"

the controller effectively asks:

"What voltage waveform should I establish while responding to power-system conditions?"

This is particularly important in systems with high inverter penetration.

Grid-forming inverters can provide voltage and frequency-forming behavior and are being studied as a means of supporting systems with reduced synchronous-machine contribution. (DOI)

A simplified architecture is:

P* | v +-------------+ | Droop / VSG | | Controller | +-------------+ | v ω* , V* | v Voltage Reference | v Voltage Controller | v Current Controller | v PWM | v Inverter | v Grid

6. Droop Control

One widely studied GFM strategy is droop control.

For active power and frequency:

ω=ω0−mp(P−P0)\omega = \omega_0 - m_p(P-P_0)

For reactive power and voltage:

V=V0−nq(Q−Q0)V = V_0 - n_q(Q-Q_0)

where:

  • PP = measured active power
  • QQ = measured reactive power
  • mpm_p = active-power/frequency droop coefficient
  • nqn_q = reactive-power/voltage droop coefficient
  • V0V_0 = nominal voltage
  • ω0\omega_0 = nominal angular frequency

Droop control enables multiple inverter resources to share power without requiring every inverter to have an identical central reference.

The Zhong and Hornik treatment of parallel inverter operation includes conventional droop control and its limitations, as well as robust droop approaches. (Wiley Online Library)

7. Virtual Synchronous Generator and Synchronverter

A major research direction is to make an inverter behave dynamically like a synchronous generator.

The synchronverter concept developed by Zhong and collaborators models key synchronous-machine characteristics in the inverter controller. Wiley's chapter specifically describes the mathematical model, implementation, simulation and experimental results of synchronverters. (Wiley Online Library)

A simplified swing equation is:

Jdωdt=Tm−Te−D(ω−ω0)J\frac{d\omega}{dt} = T_m-T_e-D(\omega-\omega_0)

where:

  • JJ represents virtual inertia
  • TmT_m represents mechanical-equivalent input torque
  • TeT_e represents electrical torque
  • DD represents damping
  • ω\omega represents virtual rotor speed

The controller converts this virtual-machine behavior into inverter voltage and frequency references.

This creates a conceptual bridge between:

Classical synchronous-generator control

and

power-electronic inverter control.

8. Grid-Following vs Grid-Forming vs VSG

Characteristic

Grid-Following

Droop Grid-Forming

VSG / Synchronverter

Primary behavior

Current source

Voltage source

Virtual synchronous machine

External grid reference

Normally required

Not necessarily

Not necessarily

PLL

Commonly used

Usually avoided in primary control

Usually avoided in primary control

Frequency support

Limited/controlled

Strong

Strong

Voltage support

Controlled

Strong

Strong

Power sharing

Through references/control

Natural through droop

Virtual-machine dynamics

Inertia emulation

Limited

Possible

Central feature

Islanded operation

More difficult

Well suited

Well suited

Weak-grid operation

Can be challenging

Potentially strong

Potentially strong

Algorithm complexity

Low-medium

Medium

Medium-high

Energy reserve

Not necessarily required

Depends on application

Required for sustained active-power response

The important engineering conclusion is that there is no universally superior inverter-control strategy. The correct architecture depends on grid strength, energy availability, application, protection requirements and grid-code requirements.

9. Current Limiting: A Critical Smart-Inverter Problem

One of the most important distinctions between a synchronous generator and a semiconductor inverter is short-term overload capability.

A synchronous generator can supply substantial fault current for a limited period.

Power semiconductors cannot tolerate unlimited current.

Consequently:

∣I∣≤Imax⁡|I| \leq I_{\max}

must be explicitly enforced.

This becomes especially important in GFM systems because the inverter is attempting to establish a voltage waveform while simultaneously protecting the semiconductor bridge.

Recent research emphasizes that current limiting is not merely a protection function: it can change the inverter's nonlinear dynamics and influence transient stability and fault recovery. (IEEE Xplore)

A 2025 IEEE conference publication similarly identifies the vulnerability of GFM semiconductor devices to overcurrent during rapid frequency disturbances and emphasizes current-limiting control. (DOI)

Therefore:

Current limiting must be designed as part of the primary control architecture—not added as an afterthought.

10. Advanced Current-Limiting Research

An interesting open-source research direction is the work of Trager Joswig-Jones and Baosen Zhang.

Their repository provides Python/Jupyter implementations associated with research on safe grid-interfacing inverter control with current-magnitude limits. The approach uses a safety-filter/control-barrier-function formulation to limit current while attempting to preserve desired voltage-source behavior. (GitHub)

This creates an important research connection:

Grid-Forming Control | v Voltage-Source Behavior | v Desired P/Q Response | v Safety Controller | v Current Constraint | v Semiconductor Protection

This is a promising area for combining:

  • Nonlinear control
  • Optimization
  • Control barrier functions
  • Model predictive control
  • AI-assisted control
  • Formal safety methods

11. Open-Source Simulation Ecosystem

Open-source and publicly accessible repositories can significantly accelerate research.

11.1 Inverter-Based Microgrid

The DongChen06/Microgrid repository provides a Python-based inverter-based microgrid simulation framework focused on voltage/frequency stabilization and power sharing among DERs. It includes configurations for multi-DER systems and experiments involving 4-DER and 20-DER microgrids. (GitHub)

This makes it useful for research into:

  • Distributed inverter control
  • Microgrid voltage regulation
  • Frequency regulation
  • DER coordination
  • Distributed control
  • Large-scale simulation

DongChen06/Microgrid

11.2 Renewable Energy Integration with Simscape

The Simscape renewable-energy repository is particularly relevant for advanced research.

It currently includes workflows involving:

  • Grid-forming BESS
  • Solar PV
  • Type-4 wind generators
  • Fault ride-through
  • Grid-code compliance
  • Stability assessment
  • Admittance scanning
  • HVDC
  • Offshore wind
  • Black start

The repository describes applications involving high penetration of inverter-based resources and comparison of GFM and GFL control. (GitHub)

Renewable Energy Integration with Simscape

11.3 Safe Current-Magnitude Control

The Python/Jupyter repository associated with current-magnitude-limited inverter research is valuable for algorithm development before embedded implementation.

Safe Current-Magnitude-Limit Inverter Control

12. Research Software Stack

A comprehensive smart-inverter research program should not depend on a single simulation package.

A recommended stack is:

SYSTEM LEVEL | MATLAB / Simulink Simscape | v Control Development | +---------+---------+ | | Python PLECS | | v v Optimization Power Electronics AI / ML / RL Switching Model | | +---------+---------+ | v HIL / RT Simulation | v Embedded Controller | +--------------+--------------+ | | RTOS Embedded Linux | | +--------------+--------------+ | v Power Hardware

Potential tools include:

  • MATLAB
  • Simulink
  • Simscape Electrical
  • PLECS
  • PSIM
  • NG-Spice
  • KiCad
  • Python
  • NumPy
  • SciPy
  • PyTorch
  • Jupyter
  • SystemC
  • SystemC TLM
  • QEMU
  • Git/GitHub
  • Docker
  • Hardware-in-the-loop platforms

13. Hardware-Software Co-Design

The smart inverter should be treated as a cyber-physical system.

The design can be divided into:

Hardware

  • DC source
  • DC/DC converter
  • DC link
  • MOSFET/IGBT/SiC/GaN bridge
  • Gate driver
  • LCL filter
  • Sensors
  • Protection circuitry
  • Auxiliary power
  • Communication interfaces

Firmware

  • PWM
  • ADC sampling
  • Current control
  • Voltage control
  • PLL or synchronization
  • Droop
  • VSG
  • MPPT
  • Current limiting
  • Fault detection
  • Protection

System software

  • Configuration
  • Data logging
  • Diagnostics
  • Communications
  • Energy management
  • Remote monitoring
  • Firmware updates

Supervisory intelligence

  • Optimization
  • Forecasting
  • AI
  • Predictive maintenance
  • DER coordination
  • Grid-edge energy management

14. Digital Controller Architecture

A practical controller can be organized into layers.

+----------------------------------------------------+ | Energy Management Layer | | PV / BESS / DER / Grid Services / EMS | +----------------------------------------------------+ | Grid-Support Layer | | Volt-VAR / Volt-Watt / Frequency Response | +----------------------------------------------------+ | Grid-Forming Layer | | Droop / VSG / Synchronverter / VOC | +----------------------------------------------------+ | Outer Control Layer | | P / Q / V / f Control | +----------------------------------------------------+ | Inner Control Layer | | Current / Voltage | +----------------------------------------------------+ | Modulation Layer | | PWM / SVPWM | +----------------------------------------------------+ | Protection Layer | | OCP / OVP / UVP / OTP / Fault Detection | +----------------------------------------------------+ | Hardware | | ADC / PWM / DSP / MCU / FPGA / Sensors | +----------------------------------------------------+

15. Embedded Controller Platform

For a prototype, suitable controller families can include:

  • TI C2000
  • STM32
  • NXP i.MX RT
  • Microchip dsPIC

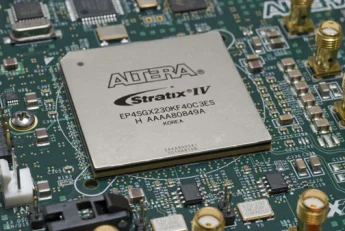

  • FPGA-based controllers
  • SoC/FPGA platforms

The real-time control loop may execute at tens of kHz, while supervisory functions operate more slowly.

For example:

100 kHz – Protection / fast sampling 20 kHz – PWM / current loop 1 kHz – Voltage / power control 100 Hz – Grid-support functions 10 Hz – Energy management 1 Hz – Telemetry / diagnostics

Actual rates must be selected from the switching frequency, plant dynamics, processor capability, sensing architecture and control design rather than copied as fixed values.

16. RTOS and Embedded Linux

A sophisticated smart inverter may use a heterogeneous architecture.

Real-time MCU/RTOS

Handles:

  • ADC
  • PWM
  • Current control
  • Voltage control
  • Protection
  • Fast fault response

Embedded Linux

Handles:

  • Networking
  • MQTT
  • Modbus
  • OPC UA
  • Configuration
  • Logging
  • Remote diagnostics
  • Cybersecurity
  • AI inference
  • Fleet management

A conceptual architecture is:

Cloud / DERMS / SCADA | Ethernet | +---------------------+ | Embedded Linux | | MQTT / Modbus / AI | +---------------------+ | IPC / CAN | +---------------------+ | RTOS Controller | | Fast Control | +---------------------+ | PWM | Power Stage

17. SystemC/TLM for Hardware-Software Co-Design

SystemC and TLM can be incorporated before hardware fabrication.

A research platform can model:

  • CPU
  • PWM peripherals
  • ADC
  • interrupt controller
  • memory
  • communication buses
  • control algorithms
  • power-system interfaces

This allows hardware/software partitioning to be evaluated before committing to a specific microcontroller or FPGA.

A potential workflow is:

System-Level Model | v SystemC/TLM Architecture | v Algorithm Validation | v Embedded C/C++/Rust | v Processor-in-the-Loop | v HIL | v Prototype

18. Hardware-in-the-Loop Development

HIL testing should be a central part of the research program.

A recommended progression is:

Stage 1 — Mathematical model

Validate:

  • Stability
  • Control equations
  • Operating points

Stage 2 — Switching simulation

Validate:

  • Semiconductor switching
  • Filters
  • PWM
  • Harmonics
  • Transients

Stage 3 — Controller-in-the-loop

Validate:

  • Sampling
  • Timing
  • Digital controller implementation

Stage 4 — Processor-in-the-loop

Validate:

  • Actual processor execution
  • Numerical precision
  • Execution time
  • Interrupt behavior

Stage 5 — Power HIL

Validate:

  • Faults
  • Grid disturbances
  • Current limiting
  • Synchronization
  • Protection

Stage 6 — Laboratory prototype

Validate:

  • Real power stage
  • Sensors
  • Gate drivers
  • Thermal behavior
  • EMI
  • Protection

19. Smart-Inverter Use Cases

Use Case 1 — Residential PV

A smart inverter can provide:

  • MPPT
  • PV conversion
  • Volt-VAR
  • Volt-Watt
  • Power-factor control
  • Monitoring

Use Case 2 — PV + BESS

The BESS adds an energy buffer.

PV | +----> DC/DC ----+ | BESS v | DC LINK +----> DC/DC ----+ | v GFM Inverter | v Grid

The battery can provide the energy reserve needed for:

  • Frequency response
  • Synthetic inertia
  • Peak shaving
  • Black start
  • Islanded operation

Use Case 3 — Islanded Microgrid

Multiple GFM inverters can establish:

  • Voltage
  • Frequency
  • Power sharing

while secondary control restores nominal operating values.

Use Case 4 — Weak Grid

GFM control can potentially improve operation where conventional GFL control experiences challenges associated with weak-grid dynamics.

Use Case 5 — Remote Communities

A BESS-based GFM inverter can form an islanded electrical network for:

  • Remote communities
  • Rural electrification
  • Telecom infrastructure
  • Mining operations
  • Disaster recovery

Use Case 6 — Grid-Edge Reactive Power

Smart inverters can provide distributed voltage support without installing dedicated centralized reactive-power equipment in every location.

20. Black Start

One important future application is black start.

A GFM inverter can establish an initial voltage waveform and then progressively energize:

  1. Local bus
  2. Auxiliary loads
  3. Distribution feeders
  4. Other DERs
  5. Larger network segments

The Simscape renewable-energy repository specifically includes a black-start workflow involving offshore wind and MMC-HVDC. (GitHub)

21. Fault Ride-Through

Modern smart inverters must be designed to remain stable during grid disturbances.

Important tests include:

  • Voltage sag
  • Voltage swell
  • Frequency deviation
  • Phase jump
  • Short circuit
  • Grid reconnection
  • Weak-grid disturbance
  • Islanding
  • Loss of communication

The controller must simultaneously:

support the grid + protect the semiconductor + maintain stability.

This is one reason current limiting is a major GFM research topic.

22. Grid-Code Compliance

A commercial smart inverter cannot be validated only by simulation.

The development process should include relevant:

  • IEEE standards
  • IEC standards
  • National grid codes
  • Utility interconnection requirements
  • EMC requirements
  • Safety requirements
  • Protection requirements

The exact requirements depend on jurisdiction, voltage level, connection category and inverter application.

The Simscape renewable-energy repository provides examples involving grid-code compliance and IEEE 2800-oriented studies, demonstrating how compliance can be integrated into simulation workflows. (GitHub)

23. Stability Analysis

Smart-inverter research should include multiple levels of stability analysis.

Small-signal stability

Study:

  • Eigenvalues
  • Poles
  • Damping ratios
  • Control-loop interactions

Impedance-based stability

Evaluate:

Zsource(s)Z_{source}(s)

and

Zload(s)Z_{load}(s)

or equivalent admittance relationships.

The Simscape repository specifically includes admittance scanning and stability assessment workflows for inverter-based resources. (GitHub)

Transient stability

Evaluate:

  • Faults
  • Phase jumps
  • Current saturation
  • Recovery
  • Islanding
  • Resynchronization

Current limiting is particularly important because entering a current-saturated operating mode can alter the nonlinear dynamics of a GFM inverter. (IEEE Xplore)

24. AI and Machine Learning Opportunities

AI should not replace the fundamental real-time control loop without rigorous validation.

Instead, AI can initially support:

Predictive Maintenance

Predict:

  • Capacitor degradation
  • Fan failure
  • Semiconductor degradation
  • Thermal stress

Grid Classification

Classify:

  • Strong grid
  • Weak grid
  • Islanded condition
  • Abnormal voltage
  • Frequency disturbance

Adaptive Control

AI can potentially assist in selecting:

  • Droop coefficients
  • Virtual inertia
  • Damping
  • Current-limit parameters

Energy Management

Optimize:

  • PV curtailment
  • BESS dispatch
  • Peak shaving
  • Demand response

A safe architecture is:

AI / Optimization | Supervisory Layer | Safe Reference | Deterministic Controller | Current Limiter | Power Stage

The deterministic safety layer should remain capable of protecting the hardware independently of the AI system.

25. Digital Twin Strategy

A digital twin can connect the complete development lifecycle.

Physical Inverter ↕ Digital Twin ↕ Simulation Model ↕ Operational Data ↕ AI / Analytics ↕ Control Optimization

The digital twin can contain:

  • Electrical model
  • Thermal model
  • Control model
  • Battery model
  • PV model
  • Grid model
  • Failure models
  • Sensor models
  • Communication model

This provides a foundation for predictive maintenance and lifecycle optimization.

26. Open-Source Research Strategy

Open-source projects should be treated as research accelerators, not automatically as production-ready firmware.

A repository evaluation matrix should include:

Criterion

Research Question

License

Can the code legally be modified and redistributed?

Documentation

Can researchers reproduce results?

Tests

Are automated tests available?

Hardware

Is a physical target defined?

Control algorithm

Is the mathematical method documented?

Simulation

Is the plant model included?

Versioning

Is development active?

Reproducibility

Can published results be reproduced?

Safety

Are protection mechanisms implemented?

Certification

Has grid compliance been demonstrated?

27. Recommended Research Repository Portfolio

A practical portfolio could include:

Microgrid control

DongChen06/Microgrid

Useful for distributed DER/microgrid control studies. (GitHub)

Renewable-energy system simulation

Renewable-Energy-Integration-Simscape

Useful for GFM, GFL, PV, wind, BESS, stability and grid-code-oriented studies. (GitHub)

Safe current limiting

Safe-Current-Magnitude-Limit-Inverter-Control

Useful for current-limited voltage-source inverter research. (GitHub)

GitHub's current inverter-control ecosystem also includes an embedded Rust grid-forming-control library, illustrating the movement from simulation toward embedded implementation. (GitHub)

28. Proposed Smart-Inverter Research Platform

A comprehensive research platform can be organized into seven layers.

Layer 7 — Cloud / DERMS / AI | Layer 6 — Energy Management | Layer 5 — Grid-Forming / Grid-Following Control | Layer 4 — Real-Time Embedded Control | Layer 3 — Power Electronics | Layer 2 — Renewable Source / BESS | Layer 1 — Electrical Grid / Microgrid

Each layer can have its own simulation and validation environment.

29. Proposed Research Methodology

Phase 1 — Literature Review

Study:

  • Synchronous machines
  • Grid-following control
  • PLL
  • Droop control
  • VSG
  • Synchronverter
  • Virtual oscillator control
  • Matching control
  • Current limiting
  • Fault ride-through
  • Weak-grid stability

The Zhong/Hornik book provides a foundational reference for power inverter control, power quality, synchronization and synchronverter concepts. (Wiley Online Library)

Phase 2 — Mathematical Modeling

Develop:

  • PV model
  • BESS model
  • DC/DC converter
  • DC link
  • Inverter
  • LCL filter
  • Grid
  • Load
  • Control loops

Phase 3 — GFL Baseline

Implement:

  • PLL
  • dq transformation
  • PI current control
  • P/Q control
  • MPPT

Phase 4 — GFM

Implement:

  • Droop
  • Voltage control
  • Frequency control
  • Current limitation

Phase 5 — VSG/Synchronverter

Implement:

  • Virtual inertia
  • Virtual damping
  • Virtual excitation
  • Power-angle relationship

Phase 6 — Advanced Protection

Implement:

  • Current limiting
  • DC overvoltage
  • AC overvoltage
  • Undervoltage
  • Overtemperature
  • Short-circuit protection

Phase 7 — HIL

Perform:

  • Fault tests
  • Weak-grid tests
  • Load-step tests
  • Frequency disturbances
  • Voltage disturbances
  • Islanding
  • Resynchronization

Phase 8 — Prototype

Build a low-power laboratory prototype before scaling toward higher power.

30. MVP Smart-Inverter Prototype

A practical research MVP could be:

PV/Battery DC source → Bidirectional DC/DC → DC link → Three-phase SiC/IGBT inverter → LCL filter → programmable AC grid → controller.

Initial features:

  • 1–5 kW laboratory-scale system
  • GFL control
  • GFM droop control
  • VSG/synchronverter experiment
  • MPPT
  • P/Q control
  • Current limiting
  • Fault detection
  • Data logging
  • Modbus/CAN/Ethernet
  • HIL validation

The prototype should remain at laboratory scale until the protection, isolation, thermal design and compliance requirements for higher-power operation have been properly engineered.

31. Research KPIs

The project should define quantitative performance indicators.

KPI

Measurement

DC-to-AC efficiency

%

THD

%

Power factor

PF

Voltage regulation

%

Frequency regulation

Hz

Settling time

ms

Overshoot

%

Current-limit response

µs/ms

Fault recovery

ms

Power-sharing error

%

MPPT efficiency

%

BESS response

kW/s

Controller latency

µs

CPU utilization

%

Thermal margin

°C

Communication latency

ms

32. Business and Industrial Applications

Smart-inverter technology creates opportunities across:

  • Solar PV
  • BESS
  • Microgrids
  • EV charging
  • Industrial power systems
  • Data centers
  • Remote communities
  • Telecom power
  • Agricultural microgrids
  • Utility-scale renewable plants
  • Offshore wind
  • Distribution-grid modernization

The transition toward inverter-dominated grids means inverter control is increasingly becoming a power-system engineering problem rather than simply a converter-control problem.

33. Role of IAS-Research

IAS-Research can provide the research and engineering layer for smart-inverter development.

Potential services include:

Research

  • Literature review
  • Mathematical modeling
  • Control-system research
  • GFM/VSG research
  • DER integration
  • Power-system stability

Simulation

  • MATLAB/Simulink
  • Simscape Electrical
  • Python
  • PLECS
  • NG-Spice
  • HIL

Embedded Development

  • DSP
  • MCU
  • RTOS
  • Embedded Linux
  • FPGA
  • SystemC/TLM

Research Prototyping

  • Hardware/software co-design
  • Controller development
  • HIL
  • Laboratory prototype
  • Data acquisition
  • Digital twin

34. Role of KeenComputer

KeenComputer can provide the digital engineering and infrastructure layer.

Potential capabilities include:

  • Cloud infrastructure
  • Linux servers
  • Docker
  • Git/GitHub workflows
  • CI/CD
  • Data acquisition platforms
  • IoT platforms
  • Monitoring
  • Cybersecurity
  • Web dashboards
  • AI/ML infrastructure
  • RAG/LLM engineering
  • SME digital transformation

This enables the smart inverter to become part of a broader IoT-enabled energy-management platform.

35. Role of KeenDirect

KeenDirect can support the commercialization and e-commerce/business side of engineering products.

Potential applications include:

  • Engineering product catalogs
  • B2B e-commerce
  • Solar/BESS components
  • Embedded controllers
  • Sensors
  • Development kits
  • Engineering tools
  • Spare parts
  • Technical documentation
  • Customer portals

A future smart-energy ecosystem could connect:

Engineering → Prototype → Product → B2B Marketplace → Service → Monitoring → Predictive Maintenance

36. Combined IAS-Research + KeenComputer + KeenDirect Model

IAS-RESEARCH Research & Engineering | v Smart Inverter | v KEENCOMPUTER Digital Infrastructure | v AI / IoT / Cloud | v KEENDIRECT Product / B2B Commerce

This creates a vertically integrated model from research through commercialization.

37. Research Opportunity

One particularly promising research direction is:

AI-Assisted Grid-Forming Smart Inverter for DER and BESS Applications

The research could investigate:

  1. Synchronverter/VSG baseline
  2. Droop-controlled GFM
  3. Adaptive virtual inertia
  4. Adaptive damping
  5. Intelligent current limiting
  6. BESS-aware frequency support
  7. Weak-grid operation
  8. Fault ride-through
  9. AI-assisted parameter optimization
  10. Digital twin
  11. HIL validation
  12. Embedded implementation

The AI layer should remain subordinate to deterministic safety and protection mechanisms.

38. Proposed Research Questions

The project can investigate:

RQ1

How does GFM control compare with conventional GFL control under weak-grid conditions?

RQ2

How should virtual inertia be selected for different DER and BESS capacities?

RQ3

How does current limiting affect GFM transient stability?

RQ4

Can adaptive control improve frequency and voltage response without compromising semiconductor protection?

RQ5

How can BESS energy availability be incorporated into virtual inertia control?

RQ6

Can AI optimize controller parameters while maintaining formal safety constraints?

RQ7

How can HIL testing accelerate certification-oriented development?

RQ8

How can digital twins support long-term smart-inverter predictive maintenance?

39. Future Research Direction

The field is moving beyond the simple GFL/GFM distinction.

Emerging research areas include:

  • Virtual oscillator control
  • Matching control
  • Dispatchable virtual oscillator control
  • Grid-forming HVDC
  • Grid-forming wind
  • Grid-forming PV
  • BESS grid forming
  • Multi-inverter interaction
  • Black start
  • Grid restoration
  • AI-assisted control
  • Safe reinforcement learning
  • Distributed control
  • Cyber-physical security
  • Digital twins
  • Autonomous DER coordination

Current research continues to emphasize that current-limiting behavior can influence both hardware protection and system-level stability. (IEEE Xplore)

40. Conclusions

Smart inverters represent a fundamental evolution in renewable-energy integration.

The inverter is transitioning from:

"a converter that follows the grid"

to:

"an intelligent power-system resource that can help form, stabilize and optimize the grid."

The work of Qing-Chang Zhong and Tomas Hornik provides an important foundation for this transition, particularly through the systematic treatment of inverter control, synchronization, power flow, parallel operation and synchronverter technology. (Wiley Online Library)

The next generation of smart-inverter research should combine:

Power Electronics + Control Theory + Power Systems + Embedded Systems + Energy Storage + HIL + AI + Digital Twins + Cybersecurity.

A robust development methodology is therefore:

Literature Review ↓ Mathematical Model ↓ MATLAB / Python Simulation ↓ Switching Simulation ↓ GFL Baseline ↓ GFM Droop ↓ VSG / Synchronverter ↓ Current-Limited GFM ↓ HIL ↓ Embedded Controller ↓ Laboratory Prototype ↓ Grid-Code Testing ↓ Digital Twin ↓ Commercial Smart-Inverter Platform

The open-source ecosystem provides an increasingly valuable foundation for this work. The current Simscape renewable-energy repository, for example, already brings together GFM BESS, renewable generation, stability assessment, grid-code studies and black-start workflows, while open Python repositories provide complementary research opportunities for microgrid control and current-limited inverter algorithms. (GitHub)

The strategic opportunity is therefore not merely to reproduce an existing inverter controller, but to develop a research-to-prototype smart-inverter platform capable of supporting renewable generation, BESS, microgrids and future inverter-dominated power systems.

References and Further Reading

  1. Qing-Chang Zhong and Tomas Hornik, Control of Power Inverters in Renewable Energy and Smart Grid Integration, Wiley-IEEE Press. Wiley describes the book as covering power-quality control, neutral-line provision, power-flow control and synchronization, including pioneering synchronverter work. (Wiley Online Library)
  2. Q.-C. Zhong, “Synchronverters: Grid-Friendly Inverters That Mimic Synchronous Generators,” in Control of Power Inverters in Renewable Energy and Smart Grid Integration, Chapter 18. (Wiley Online Library)
  3. Q.-C. Zhong and T. Hornik, “Parallel Operation of Inverters,” in Control of Power Inverters in Renewable Energy and Smart Grid Integration, Chapter 19. (Wiley Online Library)
  4. N. Hatziargyriou et al., “Grid-Forming Inverters: A Critical Asset for the Power Grid,” IEEE Journal of Emerging and Selected Topics in Power Electronics. (DOI)
  5. N. Baeckeland et al., “Overcurrent Limiting in Grid-Forming Inverters: A Comprehensive Review and Discussion,” IEEE Transactions on Power Electronics, 2024. (ResearchGate)
  6. B. Fan et al., “A Review of Current-Limiting Control of Grid-Forming Inverters Under Symmetrical Disturbances,” IEEE Open Journal of Power Electronics, 2022. (ResearchGate)
  7. “Modeling Fault Recovery and Transient Stability of Grid-Forming Converters Equipped With Current Reference Limitation,” IEEE Xplore. (IEEE Xplore)
  8. “A Current Limiting Method of Grid-Forming Inverter Under Rapid Frequency Change,” IEEE, 2025/2026 publication record. (DOI)
  9. Trager Joswig-Jones and Baosen Zhang, Safe Control of Grid-Interfacing Inverters with Current Magnitude Limits, open-source research repository. (GitHub)
  10. Dong Chen et al., inverter-based microgrid simulation repository. (GitHub)
  11. MathWorks/Simscape, Renewable Energy Integration Design with Simscape, open-source repository containing renewable-energy, GFM, stability, grid-code and black-start workflows. (GitHub)

Recommended Research-and-Development Program

For an IAS-Research-led smart-inverter program, the strongest next step would be to develop a reference smart-inverter architecture with three parallel implementations:

1. MATLAB/Simulink reference model
GFL + Droop GFM + VSG/Synchronverter + current limiter.

2. Python/open-source research model
Optimization + control-barrier-function current limiting + AI/ML experimentation.

3. Embedded prototype
MCU/DSP + RTOS + PWM/ADC + protection + communications, validated through HIL.

That three-level architecture would provide a direct bridge from academic research → reproducible simulation → embedded hardware → commercial DER/BESS product development.
